Shimano Mount Disc Brake Adapter For 180mm (SM-MA-F180P/S and SM-MA-R180P/S)

ISMMAF180PSA
₹610
Type

In the Box

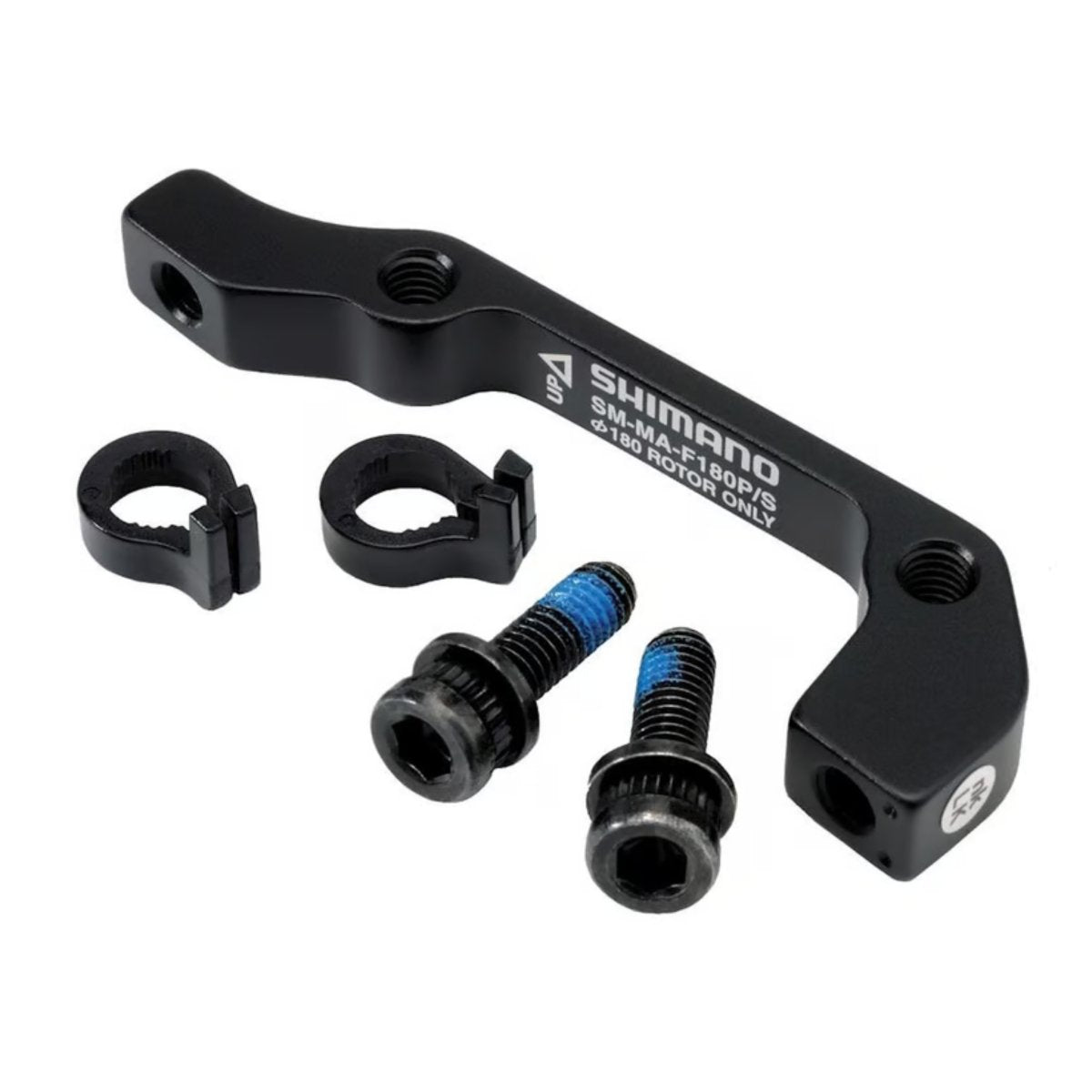

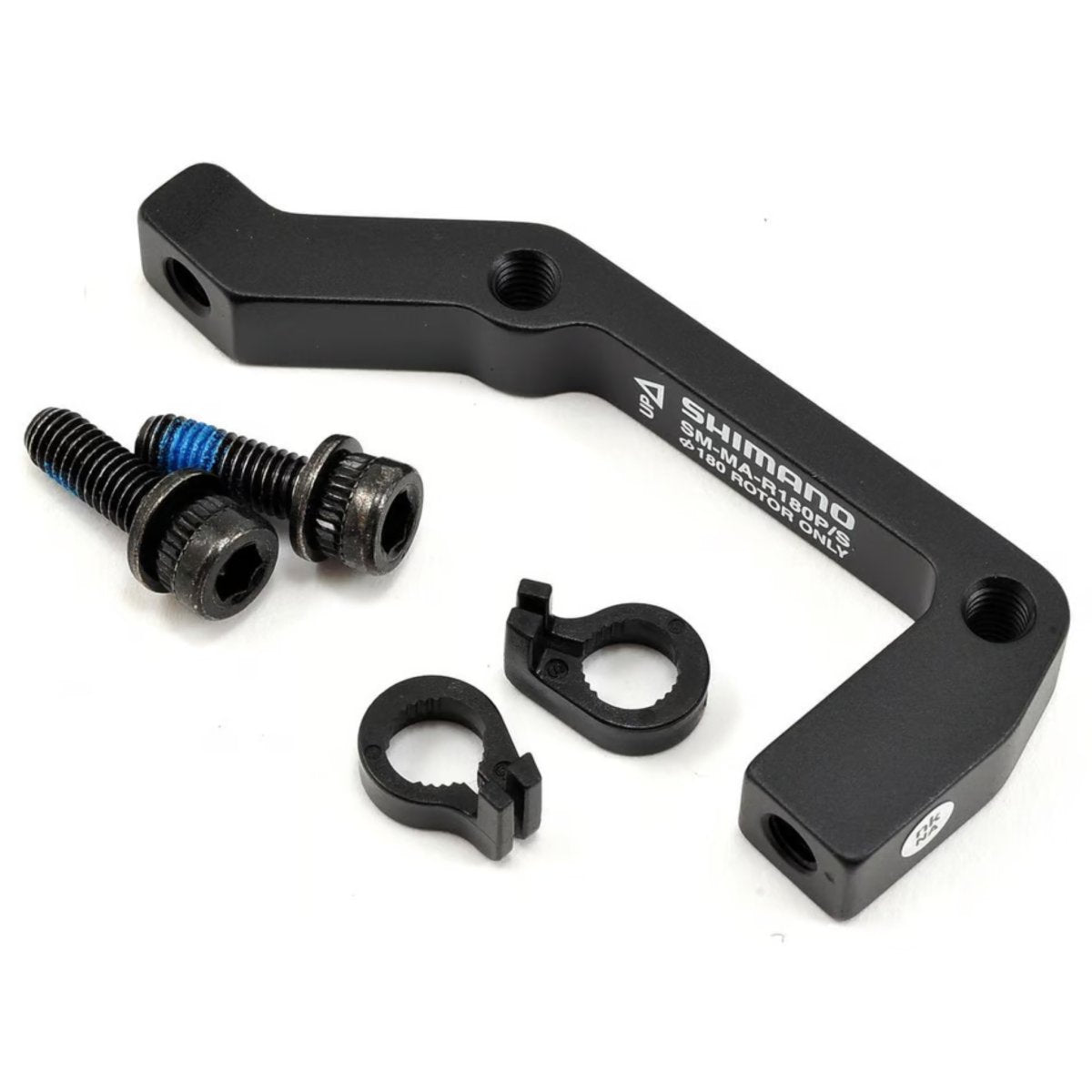

1 x Shimano Adapter 180 mm (Front or Rear)
2 x Fixing Bolts
2 x Stop Rings

Enhanced Stopping Power for 180mm Rotors

Description

The Shimano SM-MA-F180P/S and SM-MA-R180P/S adapters enable the installation of 180mm rotors by adapting different mounting standards for brake calipers and bike frames or forks. These adapters provide seamless compatibility and allow for enhanced braking performance with larger rotors.

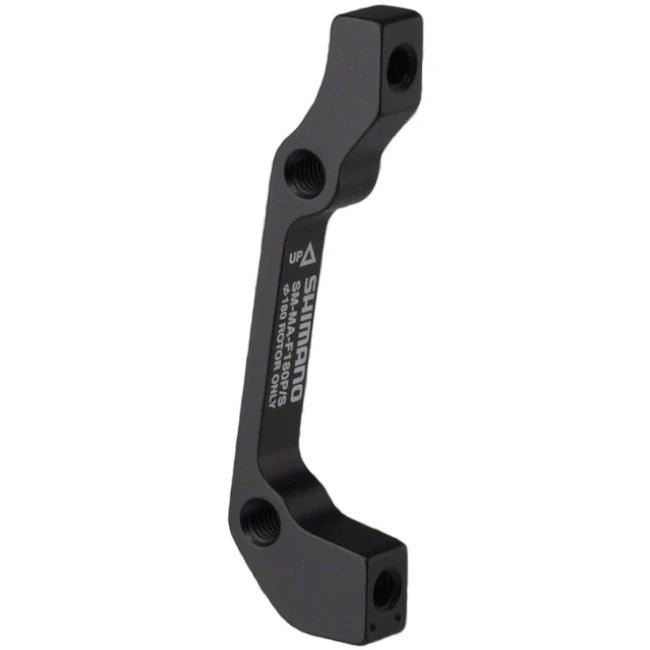

SM-MA-F180P/S: Front Fork Adaptation: The SM-MA-F180P/S adapter is designed to mount a Shimano Post Mount caliper onto a fork with an International Standard (IS) mount, making it compatible with 180mm rotors. Ideal for front forks with IS2000-Standard mounts, this adapter facilitates improved braking performance by accommodating the larger rotor size.

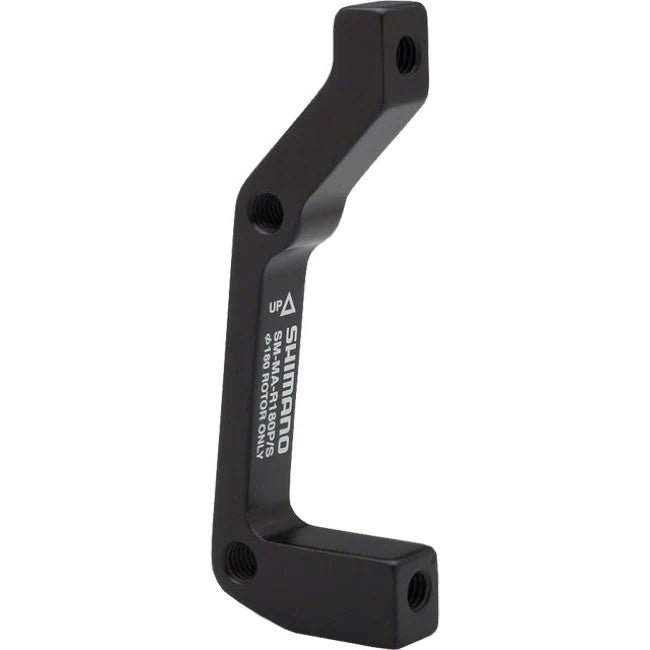

SM-MA-R180P/S: Rear Frame Adaptation: The SM-MA-R180P/S adapter allows Shimano Post Mount calipers to be installed on frames with IS mounts, enabling the use of 180mm rotors at the rear. This ensures compatibility for rear braking systems while enhancing stopping power.

Durable Aluminum Construction: Both adapters are crafted from high-quality aluminum, ensuring durability and lightweight performance. Their robust design withstands the stresses of aggressive braking, providing reliability for demanding riding conditions.

Enhanced Braking Efficiency: By enabling the installation of 180mm rotors, these adapters improve braking power and control, particularly in downhill or technical terrain. The larger rotor size offers greater stopping power, increasing rider confidence and safety.

Designed for ease of use, the adapters include the necessary hardware for quick and straightforward installation. Their versatility makes them suitable for a wide range of bikes, from mountain to gravel setups.

Features
  • Front Adapter (SM-MA-F180P/S): Enables mounting Shimano Post Mount calipers onto IS2000-standard forks for 180mm rotors, enhancing front braking performance.
  • Rear Adapter (SM-MA-R180P/S): Adapts Shimano Post Mount calipers to IS2000-standard frames for rear 180mm rotors, providing additional braking power.
  • Durable Construction: Made from high-quality aluminum for durability and lightweight performance, with steel screws for secure installation.
  • Enhanced Braking Power: Supports larger 180mm rotors, offering increased stopping power and better heat dissipation for improved control on descents and technical terrains.
  • Easy Installation: Includes mounting hardware for straightforward setup, compatible with various bike types including mountain and gravel bikes.

Specifications
  • Brake Rotor Size: 180 mm
  • Caliper Type: 74 mm Post Mount
  • Suspension / Frame Type: International A-Standard (IS)
  • Frame/Fork Mounting Standard: 51 mm IS Front/Rear
