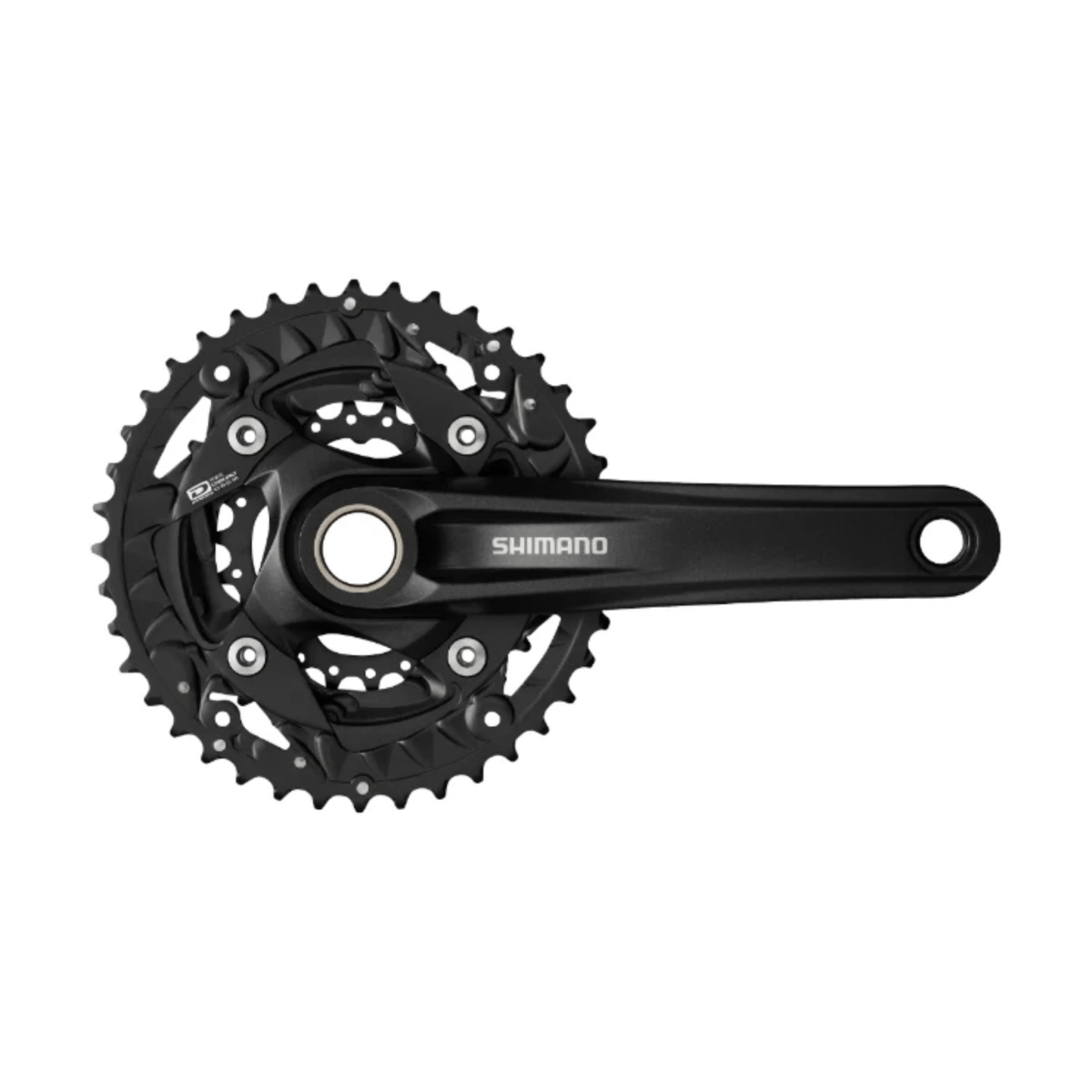

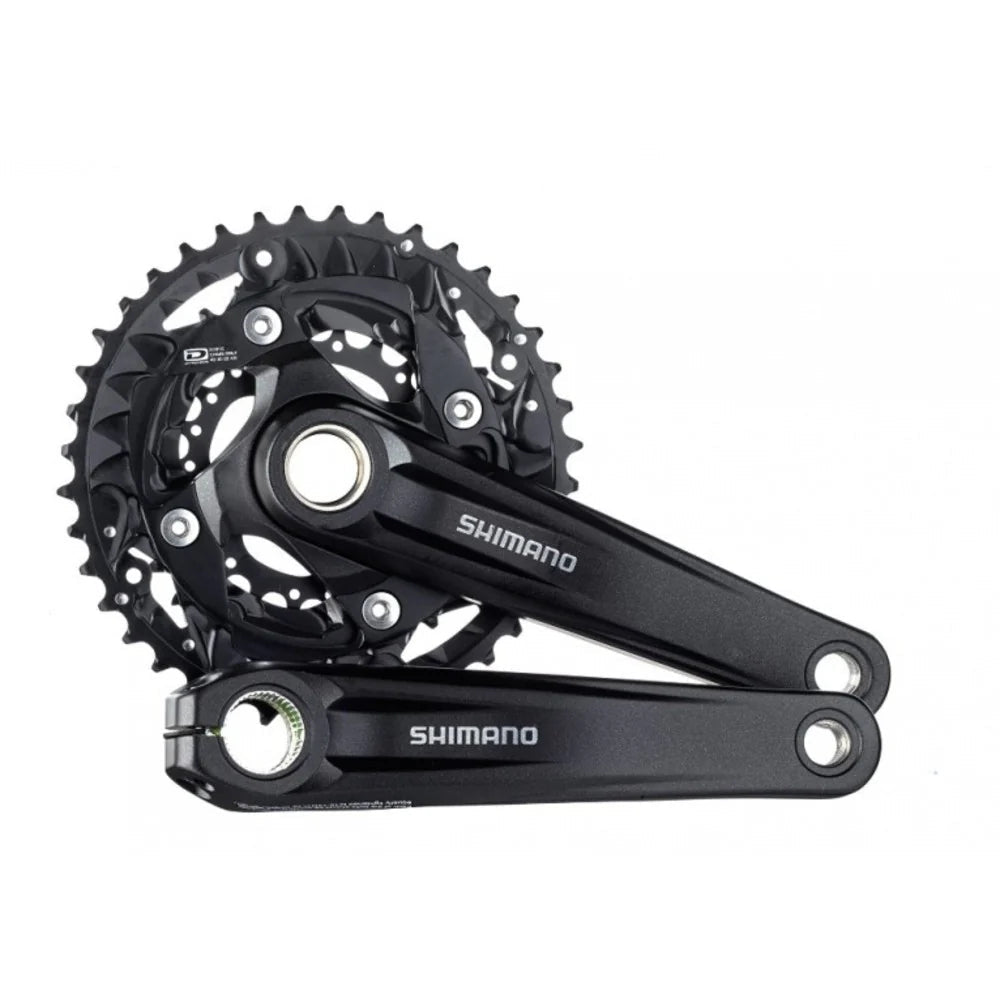

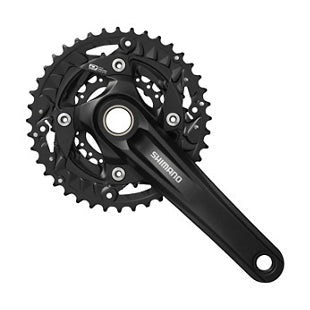

Shimano FC-MT500-3 3x10-Speed MTB Front Chainwheel

Name: Shimano FC-MT500-3 3x10-Speed MTB Front Chainwheel
Brand: Shimano
SKU: EFCMT500CX002X
Price: 8460.0 INR
Availability: InStock

EFCMT500CX002X

₹8,460

Length

170mm 175mm

Size

40-30-22T (W/O CG)

Product variants

Adaptable 3x10-Speed Crankset

Description

The Shimano FC-MT500-3 crankset is designed for riders who seek adaptability, providing a wide gear range that ensures smooth transitions from city streets to challenging mountain trails.

Durable 2-Piece Construction: Built with Shimano’s proven 2-piece construction, this crankset delivers enhanced stiffness and power transfer while maintaining long-lasting durability. Replaceable chainrings further extend its usability, making it a dependable choice for all riders.

Optimal Gear Combination: Featuring a 40-30-22T chainring combination, the FC-MT500-3 offers an ideal range of gears for climbing steep inclines and cruising flat terrain, ensuring a comfortable and efficient ride in all conditions.

Wide Compatibility: With a 50 mm chainline and compatibility for both 135 mm QR/Nut and 142 mm O.L.D. thru-axle systems, this crankset integrates seamlessly with modern MTB frames. A 177 mm Q-factor provides balanced pedaling efficiency and stability.

To cater to diverse riding preferences, the FC-MT500-3 is available with or without a chain guard, offering both added protection and a sleek design for riders who value performance and aesthetics.

Features

Durable 2-Piece Construction: Enhances stiffness and power transfer with replaceable chainrings for extended usability.
Optimal Gear Combination: 40-30-22T chainrings provide a wide range for climbing and cruising on varied terrains.
Wide Compatibility: Supports 135 mm QR/Nut and 142 mm O.L.D. thru-axle systems with a 50 mm chainline and 177 mm Q-factor.
Chain Guard Option: Available with or without a chain guard to suit rider preferences and aesthetics.
Smooth and Stable Shifting: Designed for consistent shifting performance across paved roads and steep trails.

Technologies

HG-X Chain: Directional design optimizes front and rear shifting for smoother performance and lighter weight.
Dyna-SYS: Offers closer gear ratios for improved efficiency, stability, and power transfer.
2-Piece Crank Set: Integrated design increases rigidity, enhances power transmission, and simplifies installation.

Specifications

Model No: FC-MT500-3
Series: Shimano
Color: Black
Rear Speeds: 10
Compatible Chain: HG-X 10-Speed
Chain Line (mm): 50
O.L.D.|Thru (mm): 142
O.L.D.|QR/Nut (mm): 135
P.C.D. (mm): 96/64
Spider/Gear Arms: 4
Chainring Combination: 40-30-22T
Q-Factor (mm): 177
Crank Arm Length (mm): 170, 175
Optional Chain Guard|With Chain Guard: Yes
Optional Chain Guard|Without Chain/Bash Guard: Yes
Crankset Type: 2-Piece Crankset
Compatible Bottom Bracket Type|Outboard: Yes
Recommended Bottom Bracket|Threaded (Normal): BB-MT501
Recommended Bottom Bracket|Threaded (E-Type): SM-BB52
Recommended Bottom Bracket|Press-Fit: BB-MT500-PA
Threaded Bottom Bracket Shell Width (mm): 68, 73
Crank Fixing Screw Included: Yes
Remarks: * It is fixed on the threaded middle ring
