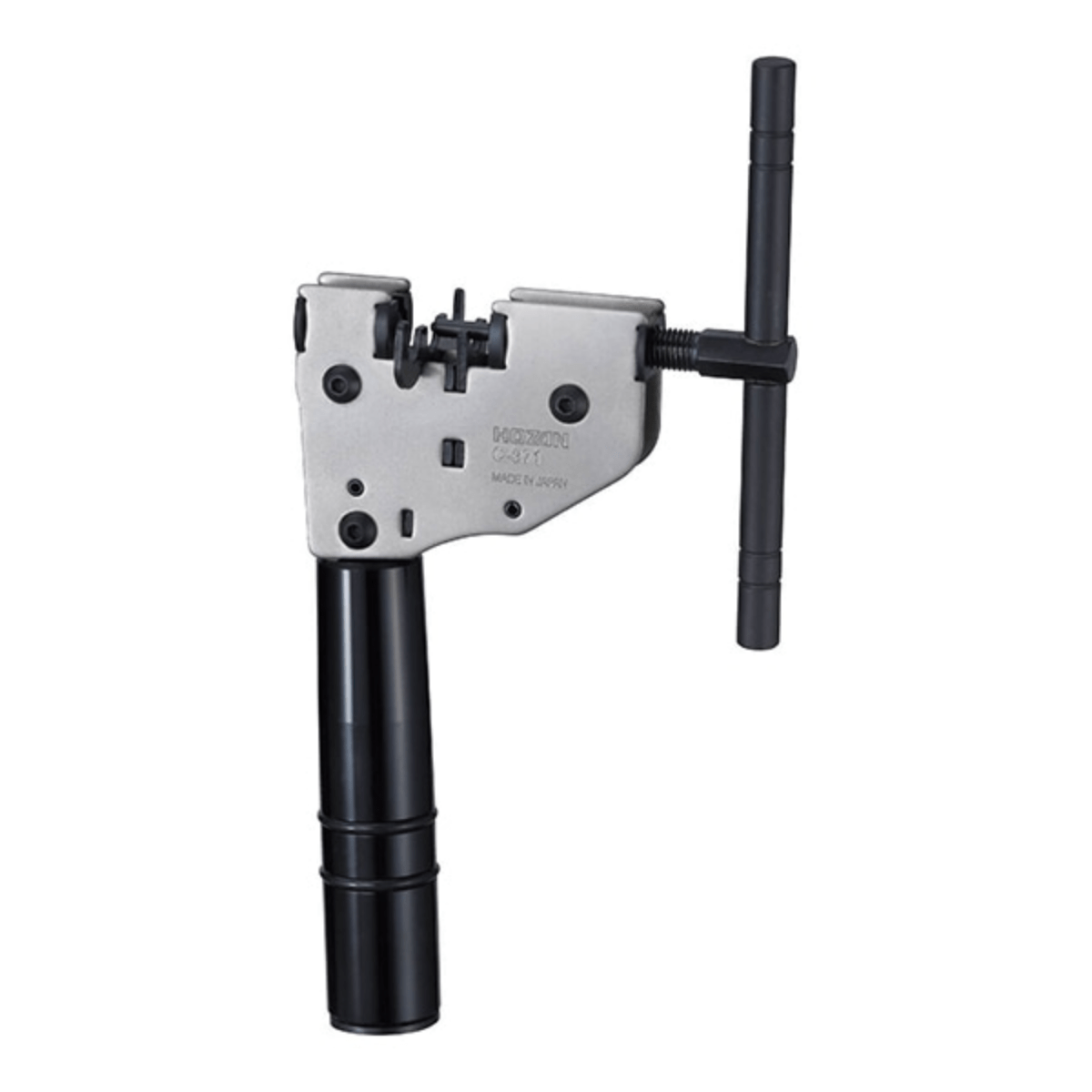

Hozan C-371 Chain Tool

HZ-C-371
₹12,995

In the Box

1x Replacement Pin
1x Peening Attachment

How To Use

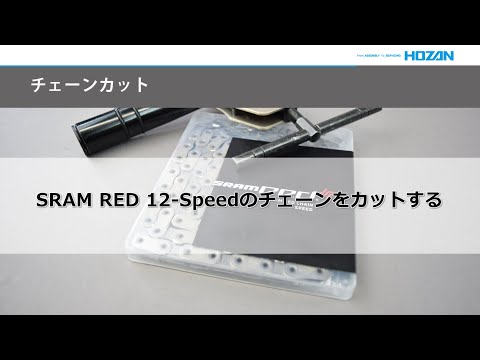

Cutting the Chain

  1. Place the tool under the chain with its guide between the inner link plates (do not use the stiffness release guide).
  2. Turn the handle clockwise while pressing with your thumb to keep the chain in the guide.
  3. Continue turning until the needle contacts the center of the connecting pin.
  4. Turn the handle counterclockwise to reverse the needle at the outer link plate.
  5. Remove the tool carefully, ensuring the chain remains intact.
  6. If the extracted pin remains, remove it and clear any burrs from the needle.

Connecting the Chain (Reinforced Connecting Pins)

  1. Insert a reinforced connecting pin into the chain and assemble it temporarily.
  2. Turn the handle counterclockwise to create a gap between the chain and the needle.
  3. Position the tool under the chain so the needle aligns with the reinforced pin (avoid the stiffness release guide).
  4. Turn the handle clockwise to press the needle tip into the center of the pin’s end.
  5. Turn the handle to press the pin while keeping the chain secure in the guide.
  6. Reverse the handle counterclockwise once the pin is fully inserted and remove the tool.
  7. Verify the chain is properly connected.
  8. Break off the guide tip of the reinforced pin by fitting it into the tool’s cavity and wrenching it off.

Connecting the Chain (Reusing Existing Pins)

  1. Turn the handle counterclockwise to create a gap between the chain and the needle.
  2. Temporarily assemble the chain and align the tool’s needle with the existing connecting pin.
  3. Turn the handle clockwise to press the needle tip into the center of the pin.
  4. Press the connecting pin carefully, ensuring the chain stays in the guide.
  5. Reverse the handle counterclockwise to secure the pin, then remove the tool.
  6. Confirm that the chain is properly connected.

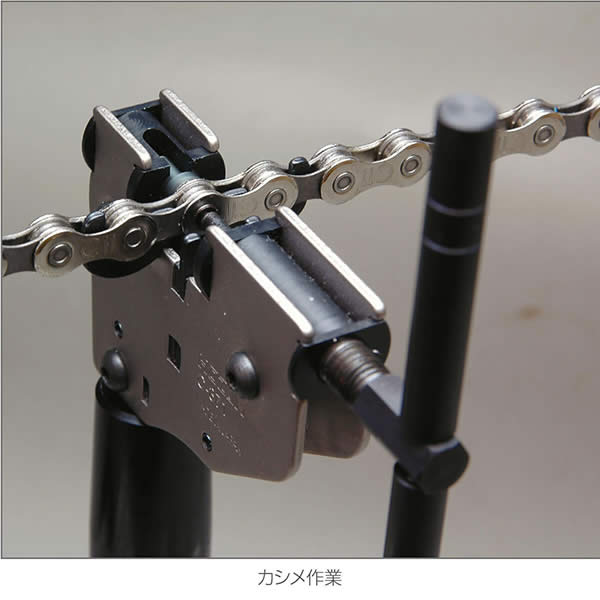

Connecting the Chain (Campagnolo 12-Speed)

  1. Follow steps 1–8 of the reinforced pin method to remove the connecting pin.
  2. Attach the peening attachment from the tool’s grip onto the tool.
  3. Turn the handle counterclockwise to create a gap between the chain and the needle.
  4. Temporarily assemble the chain and align the needle with the reinforced pin (hold the tool in the opposite direction).
  5. Turn the handle clockwise to apply the needle tip to the pin’s center.
  6. Continue turning to peen the cut portion of the reinforced pin.
  7. Reverse the handle counterclockwise to secure the pin in place.
  8. Remove the tool and return the peening attachment to its grip.

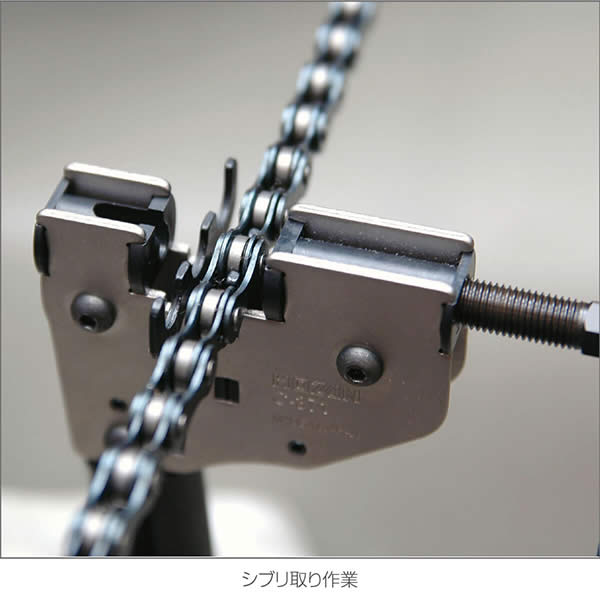

Releasing Stiffness

  1. Place the tool under the stiff area of the chain where link plates are pressed together.
  2. Turn the handle clockwise until the needle contacts the connecting pin.
  3. Continue turning an extra 1/4 to 1/2 turn for optimal release.
  4. Reverse the handle counterclockwise and remove the tool.
  5. Check the chain’s movement and adjust further if needed.

How to Replace the Pin

  1. Remove the replacement pin from the tool’s grip.
  2. Turn the handle counterclockwise to eject the damaged pin.
  3. Turn one half of the handle counterclockwise while holding the other; unscrew the handle parts using a vise and pliers.
  4. Attach the new pin and secure it with screw lock agent; apply grease on the thread.
  5. Reassemble the handle and verify proper function.

Versatile Chain Tool with Automatic Adjustment for Easy Maintenance

Description

The Hozan C-371 Chain Tool is an innovative and versatile solution for chain maintenance. Designed to work with various chain sizes and types, it eliminates the need for multiple specialized chain tools.

Automatic Adjustment for Easy Operation: Unlike conventional chain tools that require manual adjustments, this tool automatically adapts to different chain sizes. This allows for quick and hassle-free operation without worrying about compatibility.

Compatible with a Wide Range of Chains: This tool supports everything from BMX and e-bike chains to 12-speed chains from Shimano, Sram and Campagnolo. It is suitable for general-purpose bicycles, electric-assist bikes and high-performance sports bikes.

Movable Guide for Seamless Functionality: Equipped with a movable guide mechanism, the tool allows for smooth and precise chain pin removal and installation without the need for adjustments. This ensures efficiency and accuracy in every use.

Designed for long-term use, the Hozan C-371 Chain Tool is built to withstand frequent maintenance tasks. While it is compatible with most bicycle chains, some chain designs may have restrictions based on their shape.

Features

  • Automatic Adjustment for Easy Operation: Eliminates manual adjustments by adapting automatically to various chain sizes, ensuring quick and hassle-free use.
  • Compatible with a Wide Range of Chains: Works with BMX, e-bike, and Shimano, SRAM and Campagnolo 6 to 12-speed chains, making it highly versatile.
  • Movable Guide for Seamless Functionality: Ensures smooth and precise chain pin removal and installation without requiring adjustments.
  • Reliable and Durable Construction: Built for long-term use in frequent maintenance tasks, with compatibility restrictions on some uniquely shaped chains.

Precautions

  1. Wear protective gloves to avoid injury.
  2. Lubricate all screw portions with grease before use.
  3. Use only for bicycle chains; do not use for other purposes.
  4. Do not use if cracks, breaks, wear, or deformations are present.

Specifications

  • Applicable Chains: E-Bike Chains, BMX Chains, Narrow Chains for Multiple Speed Derailleurs (HG/IG/UG by Shimano), Shimano / SRAM / Campagnolo 6 to 12-Speed Chains (Note: Some uniquely shaped chains may not be compatible)
  • Handle Diameter: 1/2×1/8, 1/2×3/32, 1/2×3/16
  • Weight: 280 g
  • Country of Origin: Japan
