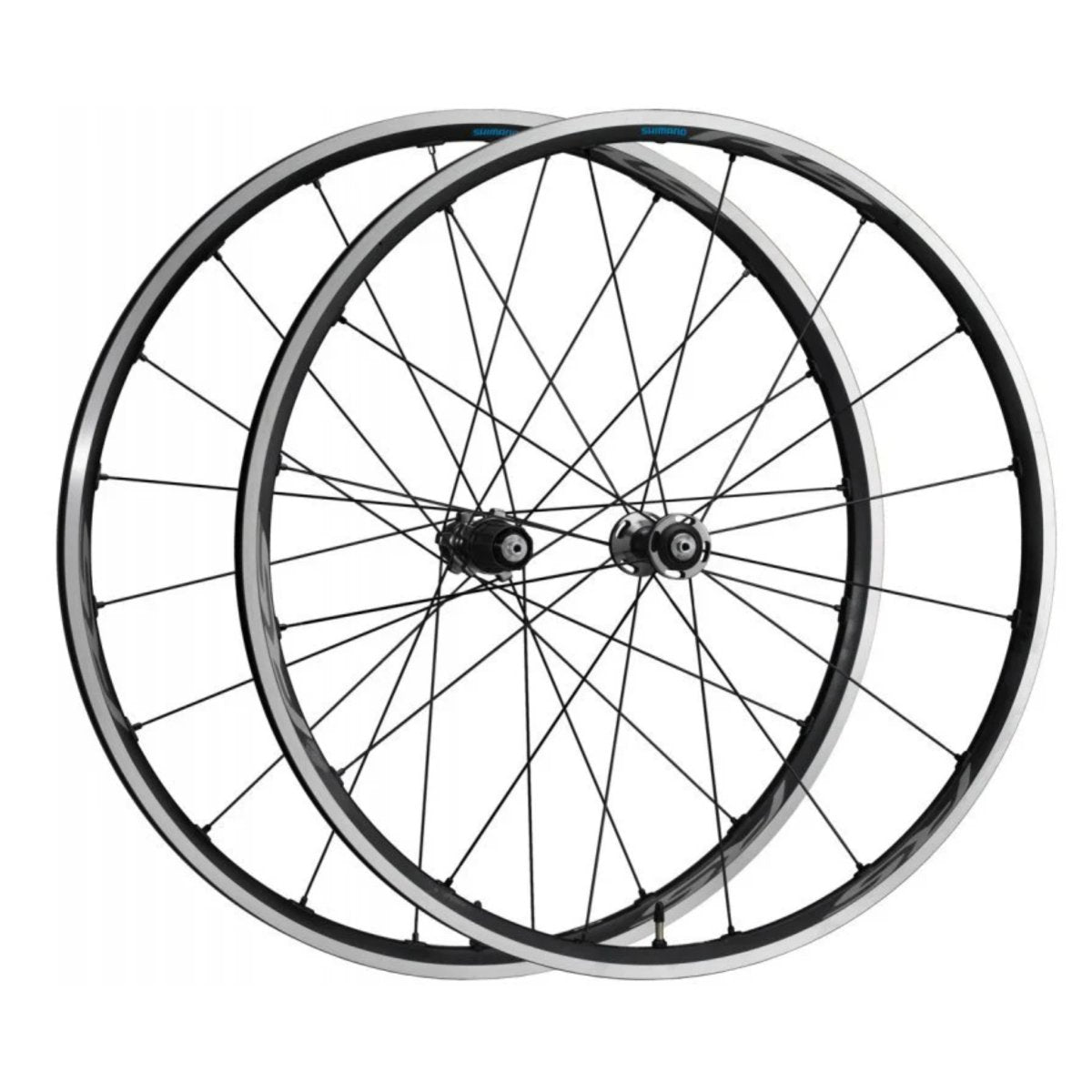

Shimano Ultegra WH-RS500-TL-FR 24mm Tubeless Rim Bake Wheelset

EWHRS500FRL
₹44,110
Length

In the Box

1x WH-RS500-TL-F Front Wheel
1x WH-RS500-TL-R Rear Wheel
incl. Quick Release Skewers and Rim Tapes

Lightweight Tubeless Wheelset for Road Performance

Description

The Shimano Ultegra WH-RS500-TL-FR Wheelset delivers race-level performance tailored for everyday riders. Combining lightweight design with tubeless technology, this wheelset ensures speed, reliability, and a smooth riding experience.

Lightweight and Fast-Accelerating Rims: Featuring 24mm rim depth, the WH-RS500-TL-FR is designed for quick acceleration and optimal climbing performance. The lightweight construction reduces rotational weight, making it ideal for both hilly terrains and flat roads.

Tubeless Technology for Enhanced Versatility: The tubeless-ready design enhances reliability by reducing the risk of pinch flats and allowing lower tire pressures for improved grip and comfort. It offers versatility for riders seeking performance and endurance in various road conditions.

Premium Shimano Race Technology: Inspired by Shimano’s race-level components, this wheelset integrates cutting-edge advancements for everyday use. It provides precise handling and consistent performance, making it a reliable choice for training or leisure rides.

Durable and Efficient Build: Constructed from high-quality materials, the WH-RS500-TL-FR ensures long-term durability without compromising performance. The hub and spoke configuration are optimized for stiffness and efficient power transfer.

Designed for rim brake systems, this wheelset is compatible with standard road frames. Its easy setup and reliable performance make it a valuable addition to any road cycling enthusiast's arsenal.

Features
  • Efficient Acceleration: Lightweight 24mm rim depth reduces rotational weight, ideal for climbing and quick accelerations.
  • Tubeless Technology: Enhances reliability with reduced pinch flats and allows lower tire pressures for improved grip and comfort.
  • Durable and Stiff Build: Welded aluminum rims with brazed reinforcement ensure strength and long-term durability.
  • Premium Shimano Technology: Integrates race-level advancements like the digital adjustment system for precise and consistent performance.
  • Seamless Compatibility: Designed for rim brake systems and compatible with 11/10-speed HG spline cassettes (adapter required for 10-speed).
  • Digital Adjustment System: Provides precise hub adjustments for consistent performance and easy maintenance.
  • Contact Seals: Protects the hub from contaminants for improved longevity and performance.

Specifications
  • Model No: WH-RS500-TL-F & WH-RS500-TL-R
  • Series: Shimano
  • Model Name: WH-RS500-TL
  • Specification: F / R
  • Color: Dark Gray
  • Color|Hub Shell: Silver
  • Color|Quick Release: Silver
  • Front/Rear: Front / Rear
  • Brake Type: Rim Brake
  • Rear Speeds: Rear: 11/10* (*Adapter is needed to use a 10-speed cassette)
  • O.L.D. (mm): Front: 100, Rear: 130
  • Wheel Size: 622 x 15C (700C)
  • Tire Type: Tubeless
  • Recommended Tire Size: 23-622 - 32-622
  • Rim Height (mm): 24
  • Rim Internal Width (mm): 15
  • Rim External Width (mm): 20.8
  • Rim Joint: Welded
  • Rim|Brazed Reinforcement: Yes
  • Offset Rim: Rear: Yes
  • Spokes Number: Front: 16, Rear: 20
  • Spokes|Straight Pull: Yes
  • Spokes|Bladed: Yes
  • Spokes|Butted: Yes
  • Spokes Diameter (mm): Front: 2.0-1.5-2.0, Rear: 2.0-1.8-2.0
  • Axle Fixing Method: Quick Release
  • Quick Release Skewer Length (mm): Front: 133, Rear: 163, 168
  • Spline Type|HG Spline L (Road 12/11-Speed): Yes (Rear)
  • Engagement Type: Rear: Pawl Ratchet
  • Digital Adjustment System: Yes
  • Seal|Hub: Contact
  • Seal|Freehub Body: Contact (Rear)
  • Internal Grease Sleeve: Yes
  • Rim Finish: Anodized (Rear)
  • Reflectors|JIS/CPSC: Cateye RR-550-WUW SW
  • Reflectors|AS: Cateye RR-550-WUA SW
  • Reflectors|DIN: Cateye RR-317-WUA SW
  • Average Weight (g): Front: 705, Rear: 944
  • Compatible Spoke Protector (Rear): CP-WH23 (23-28T), CP-W120 (32T), CP-W020 (10-Speed)
Shimano Warranty Information
