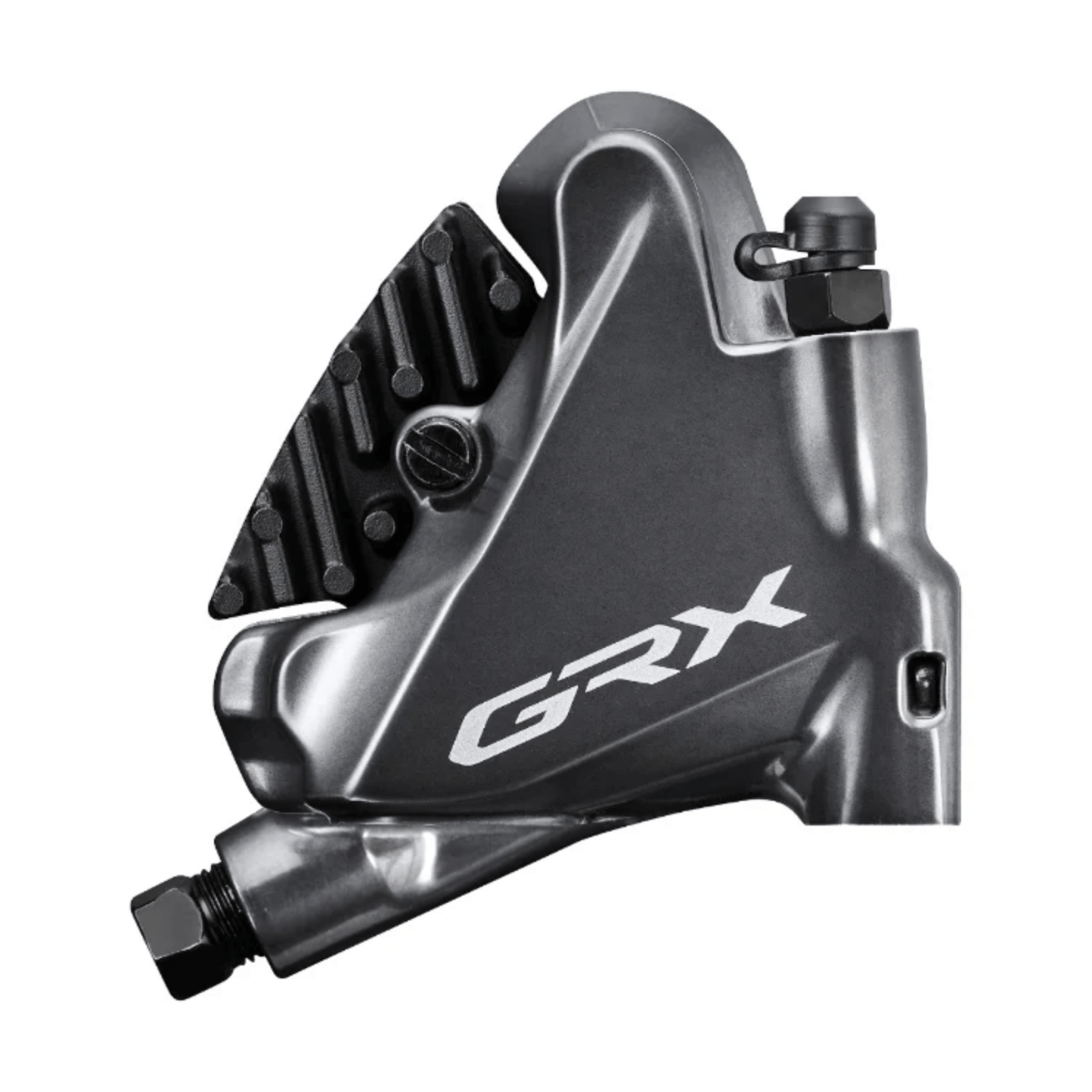

Shimano GRX BR-RX810 Flat Mount Brake Caliper

IBRRX810F6RF
₹6,680
Type

In the Box

1x Shimano GRX BR-RX810 Brake Caliper (Front or Rear Wheel)

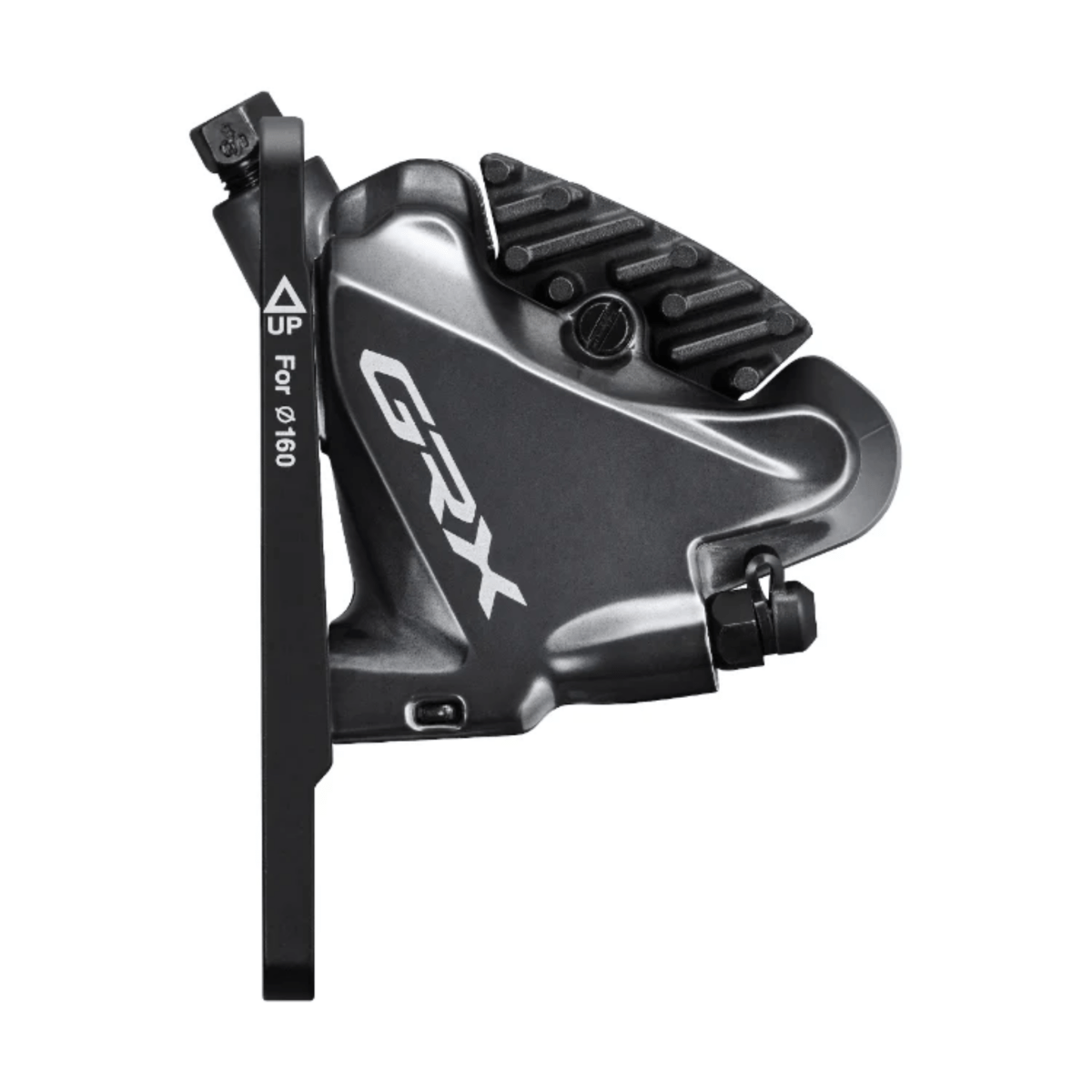

1x Bracket for 140/160mm Rotor (Front)
1x Fixing Bolt for 25 mm (Rear)
1x L03A Resin Pad w/ Fin (Front or Rear)

Exceptional Control and Heat Dissipation for Gravel Adventures

Description

The Shimano GRX BR-RX810 hydraulic disc brake caliper is purpose-built to provide excellent braking performance, ensuring greater control and confidence during mixed-terrain adventures.

Low-Profile Flat Mount Design: Designed with a sleek Flat Mount system, the BR-RX810 caliper allows for a streamlined setup that integrates seamlessly with modern bike frames, offering both functionality and aesthetics.

Consistent and Powerful Braking: Thanks to Shimano's advanced hydraulic technology, this brake caliper delivers smooth, predictable braking power in varying conditions, from loose gravel to urban streets.

Durable and Heat-Resistant: Engineered for longevity, the GRX BR-RX810 features heat-dissipating construction that ensures reliable performance during long descents or aggressive braking scenarios.

Tailored for the demands of gravel and all-road cycling, this caliper offers a dependable braking solution, making it a key component for riders who seek to explore without limits.

Features
  • Tackle Rough Terrain with Confidence: Designed for consistent and reliable braking performance on challenging surfaces.
  • Efficient Heat Dissipation: Incorporates Ice Technologies to minimize heat buildup and maintain optimal braking power.
  • Flat Mount Design: Sleek and compact setup ideal for modern gravel and road bikes.
  • Simplified Maintenance: Features convenient tool access, an easy hose joint system (J-kit), and a straightforward bleeding system.
  • Seamless Wheel Replacement: Designed for hassle-free wheel changes, ensuring smooth transitions during rides.

Technologies

  • Ice Technologies: Advanced rotors and pads dissipate heat effectively, reducing brake fade, extending pad life, and delivering consistent performance in demanding conditions.
  • One Way Bleeding: Streamlined oil routing prevents air bubbles for quick and clean hydraulic maintenance using mineral oil and a funnel tool.

Specifications
  • Model No: BR-RX810-F, BR-RX810-R
  • Series: GRX
  • Color: Series Color
  • Brake Type: Hydraulic Disc Brake
  • Brake Hose (Kit): SM-BH90-JK-SSR, SM-BH90-J-SSR
  • Hose Joint: Straight
  • Brake Hose Color (Kit)|1: Black
  • J-Kit Spec (for OEM): Yes
  • Ice Technologies Pad Compatible Caliper: Yes
  • Pad|Standard 1: K05S-RX Resin (w/o fin)
  • Pad|Standard 2: L05A-RF Resin (w/ fin)
  • Pad|Option 1: K04S-MX Metal (w/o fin)
  • Pad|Option 2: L04C-MF Metal (w/ fin)
  • Fixing Screw Spec for Rear Mount (mm): 10, 15, 20, 25, 30, 35
  • Recommended Brake Lever: ST-RX810, BL-RX810, ST-RX815
  • Recommended Disc Brake Rotor: SM-RT800, RT-MT800
  • Oil: Shimano Mineral
  • One Way Bleeding: Yes
  • Mount Type: Flat Mount
  • Piston: 2
  • Caliper Fixing Bolt|Tool Size: 4 mm
  • Caliper Fixing Bolt|Anti-Loosen Method: Screw Fixing Pin+Snap Ring
  • Pad Mount: Pad Axle
  • Average Weight (g): Front: 141, Rear: 124
  • Remarks: Front Spec with Adaptor
Shimano Warranty Information
