Shimano Deore WH-MT500-CL-27.5 Clincher Center Lock Disc Brake Wheelset

Name: Shimano Deore WH-MT500-CL-27.5 Clincher Center Lock Disc Brake Wheelset
Brand: Shimano
SKU: EWHMT500RD7C
Price: 6050.0 INR
Availability: InStock

EWHMT500RD7C

₹6,050

Type

Rear

Length

168mm

Product variants

Strong and Reliable 27.5" Disc Brake Wheelset

Description

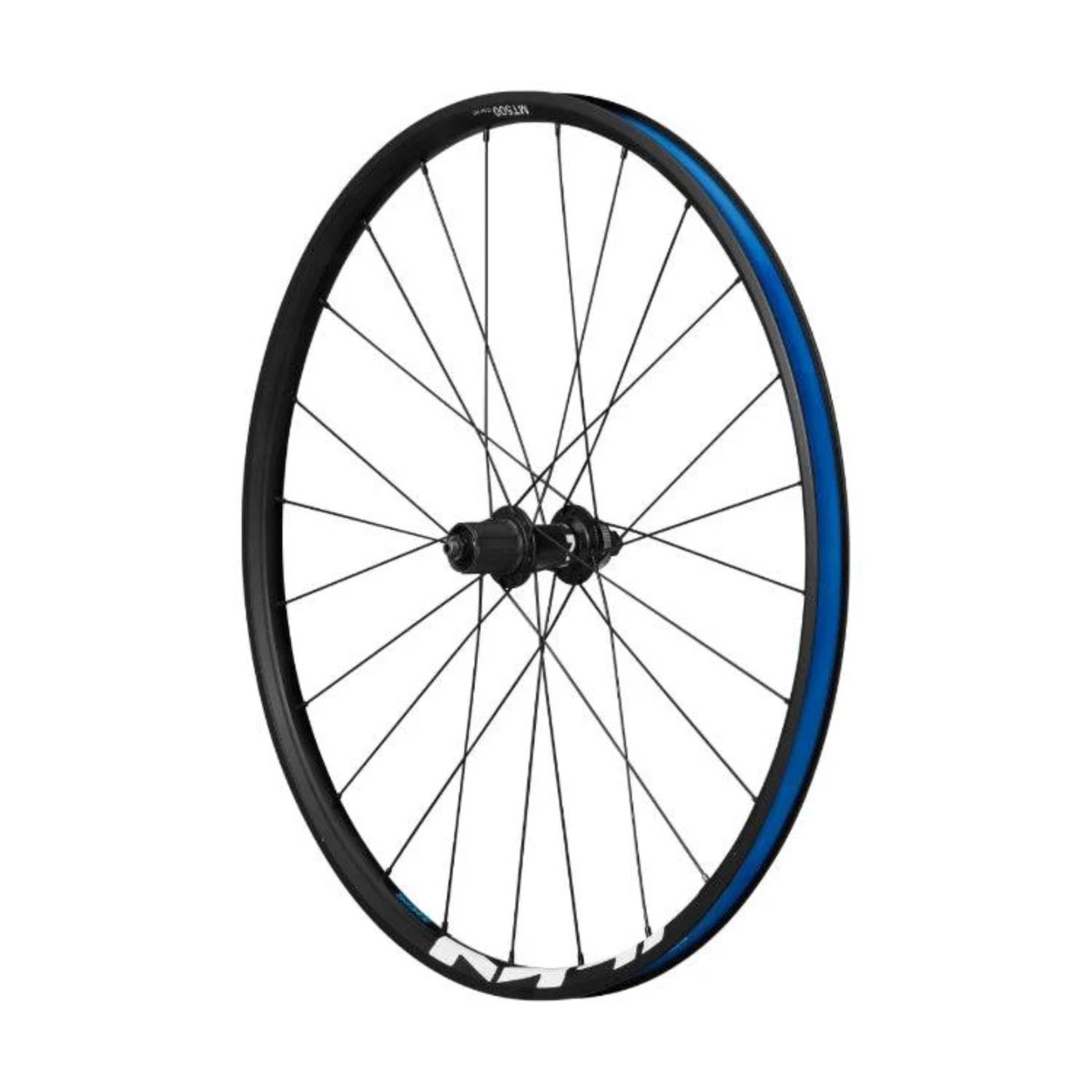

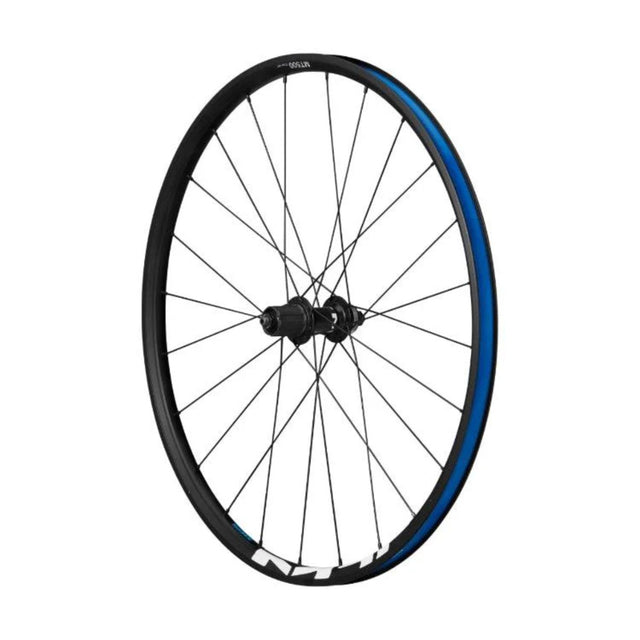

The Shimano Deore WH-MT500-CL-27.5 is a reliable clincher wheelset designed for mountain biking. Engineered for strength and smooth performance, it is ideal for tackling challenging trails and rough terrains.

Wide and Sturdy Rims: The aluminum rims feature a 24mm internal width and a 21mm height, providing a stable platform for tires ranging from 2.00" to 2.40". This ensures excellent traction and control on various terrains.

Robust Spoke Configuration: Equipped with 24 double-butted stainless steel spokes in a 2-cross pattern, this wheelset offers durability and efficient power transfer, making it a dependable choice for demanding rides.

Smooth and Durable Hubs: The hubs use Shimano’s cup and cone bearing system with labyrinth and contact seals. This design ensures smooth rolling performance and long-lasting reliability, even in harsh conditions.

Center Lock Disc Brake Compatibility: Designed for Center Lock disc brakes, the wheelset allows for easy rotor installation and delivers consistent and reliable braking performance in all weather conditions.

The front wheel supports a 15x100mm thru-axle, while the rear accommodates a 12x142mm thru-axle. These modern standards ensure compatibility with a wide range of mountain bike frames.

Features

Wide and Durable Rims: 24mm internal width and 21mm height aluminum rims provide stability and control for tires ranging from 2.00" to 2.40".
Robust Spoke Configuration: 24 double-butted stainless steel spokes in a 2-cross J-bend pattern ensure durability and efficient power transfer.
Smooth and Durable Hubs: Shimano's cup and cone bearing system with labyrinth and contact seals delivers smooth rolling and long-lasting reliability.
Center Lock Disc Brake Compatibility: Quick and secure rotor installation for consistent braking performance in all weather conditions.
Modern Axle Standards: Front wheel supports 15x100mm thru-axle, and rear supports 12x142mm thru-axle, ensuring broad compatibility with MTB frames.

Technology

Center Lock System: Allows easy rotor installation with enhanced precision and braking efficiency.
Cup and Cone Bearings: Provide smooth rolling performance and increased hub longevity.

Specifications

Series: Shimano
Model No: WH-MT500-CL-F-275 & WH-MT500-CL-R-275
Model Name: WH-MT500-CL
Specification: F-275, R-275
Color|Hub Shell: Black
Color|Quick Release: Black
Front/Rear
Brake Type: Center Lock Disc Brake
Rear Speeds: 11/10/9/8 *(* Spoke Protector is available only for 9 & 10-Speed)
O.L.D. (mm): F: 100 & R: 135
Wheel Size: 584 x 24C (27.5 inch)
Tire Type: Clincher
Recommended Tire Size: 27.5 x 2.00 - 2.40
Rim Height (mm): 21
Rim Internal Width (mm): 24
Rim External Width (mm): 29.6
Rim Joint: Sleeve
Requires Rim Tape: Yes (24-584)
Spokes Number: 24
Spoke|J-bend: Yes
Spokes|Diameter (mm): 2.3
Axle Fixing Method: Quick Release
Quick Release Skewer Length (mm): Front: 133 and Rear: 168, 173
Spline Type|HG Spline M (10/9/8-Speed, MTB 11-Speed): Yes
Engagement Type: Pawl Ratchet
Bearing|Cone: CBN
Seal|Hub: Labyrinth + Contact
Internal Grease Sleeve: Yes
Rim Material: Aluminum
Rim Finish: Anodized
Spoke Material: Stainless Steel
Spoke Finish: Black
Nipple Material: Brass
Nipple Finish: Black
Hub Shell Material: Aluminum
Hub Shell Finish: Painted
Quick Release Lever Material: Aluminum
Quick Release Lever Finish: Painted
Quick Release Housing Material: Steel
Quick Release Housing Finish: Painted
Quick Release Nut Material: Steel + Resin
Internal Grease Sleeve: Yes
Reflectors|JIS/CPSC: Cateye RR-550-WUW SW
Reflectors|AS: Cateye RR-550-WUA SW
Reflectors|DIN: CATEYE RR317-WUA SW
Average Weight (g): Front: 962 and Rear: 1147
