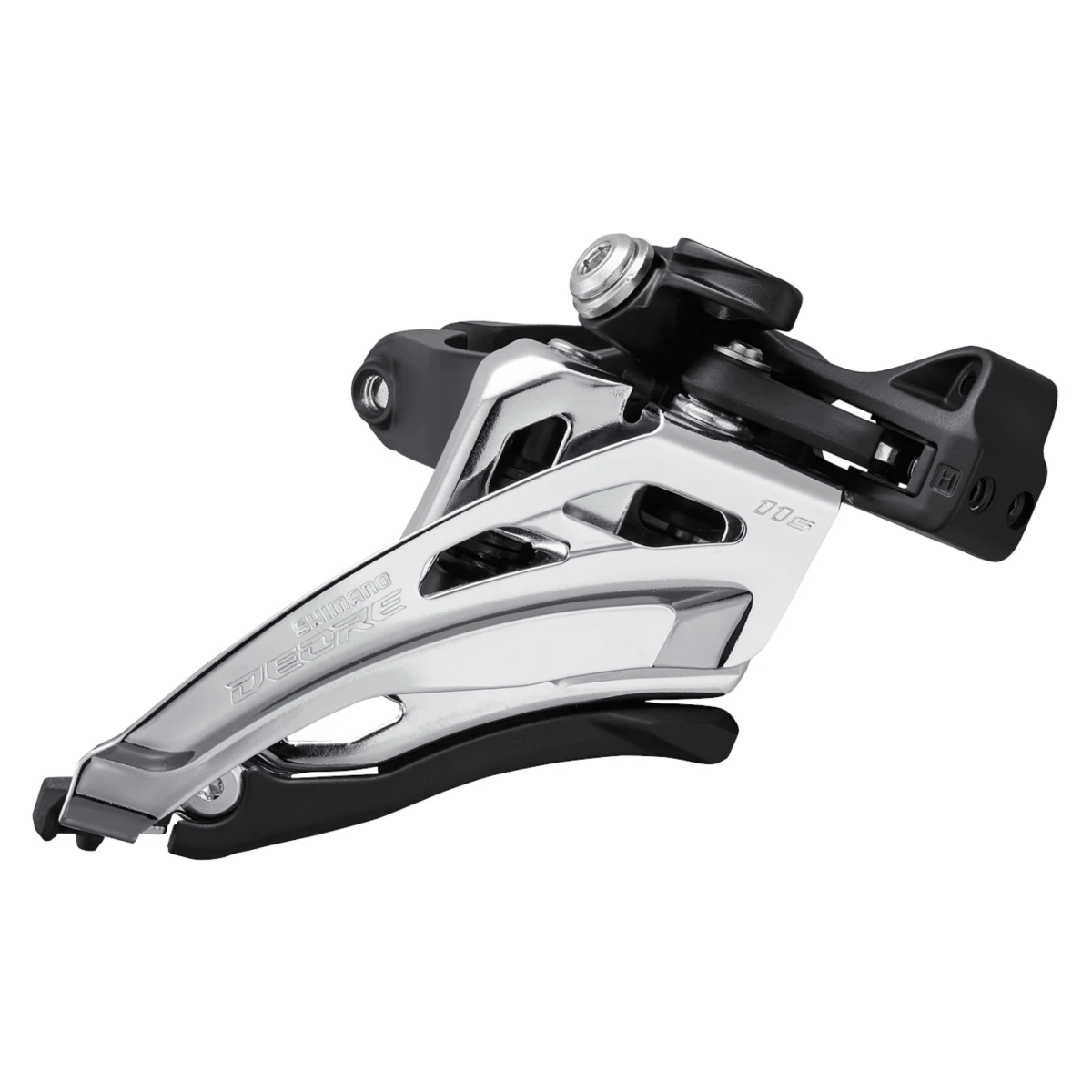

Shimano Deore FD-M5100-M Side Swing Clamp Band Mount 2X11-Speed Front Derailleur

Name: Shimano Deore FD-M5100-M Side Swing Clamp Band Mount 2X11-Speed Front Derailleur
Brand: Shimano
SKU: IFDM5100MX4
Price: 2410.0 INR
Availability: InStock

IFDM5100MX4

₹2,410

Optimized Shifting for 2x11-Speed

Description

The Shimano Deore FD-M5100 front derailleur introduces Side Swing technology, providing improved cable routing and smoother, quieter shifting performance.

Optimized for 2x11-Speed Drivetrains: Designed for precision, this derailleur supports 2x11-speed drivetrains, ensuring seamless gear transitions on various terrains.

Enhanced Clearance: The innovative Side Swing design offers increased clearance for large wheels and short chain stays, making it ideal for modern mountain bike geometries.

Light and Responsive Shifting: With refined mechanics, this derailleur delivers light action and responsive shifts, improving control and efficiency on the trail.

Built with Shimano's trusted durability, the FD-M5100 is designed to withstand the demands of off-road cycling while delivering consistent performance ride after ride.

Features

Optimized for 2x11-Speed Drivetrains: Supports 2x11-speed setups for seamless gear transitions on various terrains.
Enhanced Clearance: Side Swing design provides better clearance for large wheels and modern mountain bike geometries.
Light and Responsive Shifting: Refined mechanics ensure smooth, precise, and responsive gear changes.
Wider Tire Compatibility: Suitable for 2.3-inch tires on wider rims, enhancing versatility for trail riding.
Durable and Reliable: Built with Shimano's trusted quality for consistent performance under off-road conditions.
Side-Swing Technology: 90% improved shifting performance with reduced force and better cable routing for easier operation.

Technology

Side Swing Front Derailleur: Improves cable routing and shifting efficiency with horizontal movement aligned to the chain direction.

Specifications

Model No: FD-M5100-M
Series: Deore
Front Speeds: 2
Rear Speeds: 11
Compatible Chain: Linkglide, HG 11-Speed

Action|Side Swing: Yes
Mount|Clamp Band (mm)|28.6:* (*S-size adapter is available in OTC package only.)
Mount|Clamp Band (mm)|31.8: Yes (w/ M size adapter)
Mount|Clamp Band (mm)|34.9: Yes
Cable Route Type|Front-pull: Yes
Chain Line (mm): 48.8/51.8
Chainstay Angle (deg): 66-69
Top Gear Teeth: 36T
Total Capacity: 10T
Angled Stroke Adjust Screw: Yes
Angled Clamp Band Design: Yes
Link Bushings: 4
