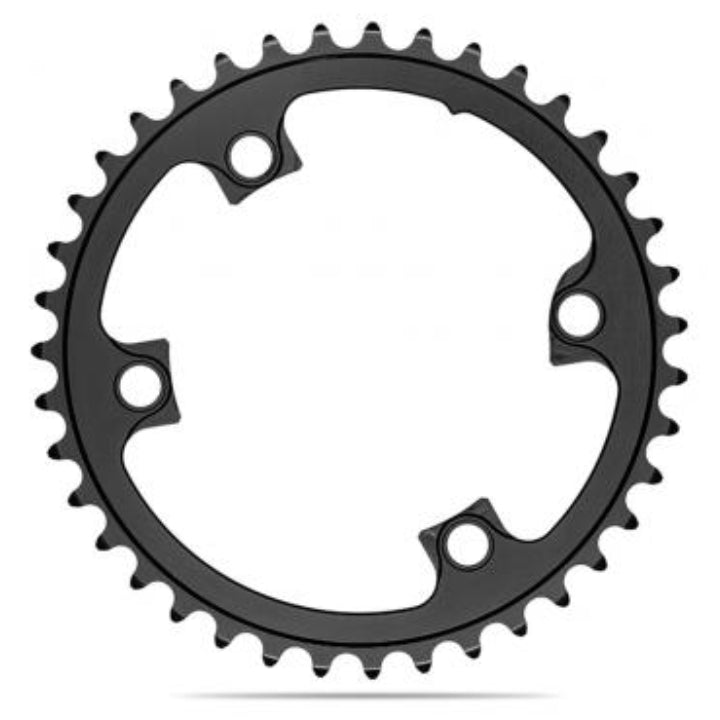

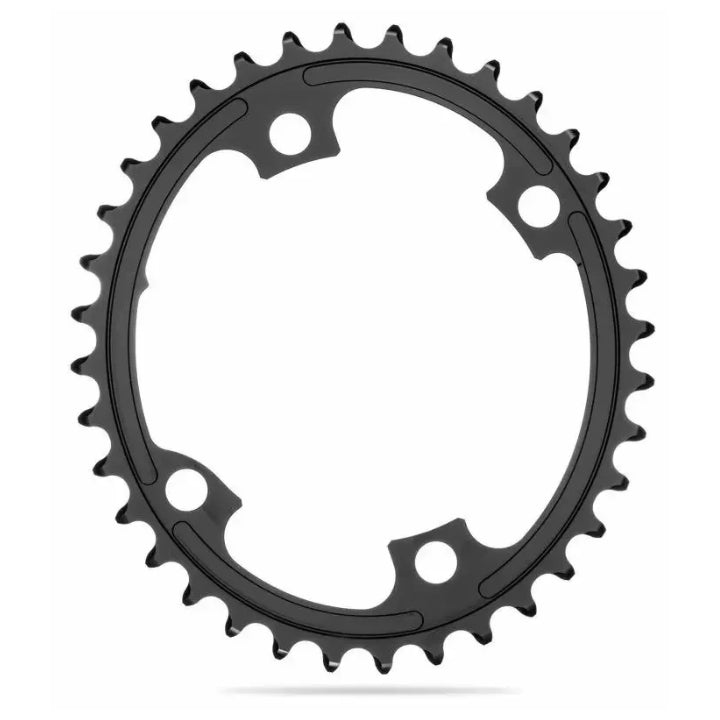

Absolute Oval Road 2X 110/4 Shimano 9100 Chainring

ROV9100/3X/4BK_34T
₹5,995
Color: Black
Size

How To Use

How to Mount:

  1. Remove your crank from your bike.
  2. Unscrew the 4 bolts holding the two chainrings together with a T-30 torx key.
  3. Remove both original rings.
  4. Locate the new inner chainring with the triangular timing indicator positioned behind the crank arm.
  5. Ensure the bolt holes on the small chainring are recessed for the nut heads to sit flush.
  6. Position the Absolute Black outer chainring's specific mounting tabs correctly on the new version of crank arms (for older cranks, locate the recess behind the crank arm).
  7. If only changing the inner chainring, use the original bolts.
  8. If replacing a pair of rings, use regular ‘double’ chainring bolts or Absolute Black Bolt covers.
  9. Tighten all four bolts to 5-7Nm.
  10. Mount your crank back to the bike and adjust the front derailleur if changing the outer ring size.

Important:

  • Ramps on big rings are specially configured for combinations: 50/34, 52/36, 52/38, 53/39T. Using other configurations may require adjustments to the front derailleur.
  • Always use a new chain when fitting new chainrings.

Elevate Your Cycling Performance

Description

Introducing the Absolute Oval Road 2X 110/4 Shimano 9100 Chainring, designed to elevate your cycling performance to new heights.

Premium Compatibility: Compatible with a range of Shimano cranks, including Dura-Ace 9100, 9000, Ultegra 8000, 6800, and 105 R7000, these chainrings offer unparalleled compatibility and versatility.

Optimized Design: Crafted with precision and care, these chainrings feature specially configured ramps on the big rings for optimal shifting performance. Whether you prefer combinations like 50/34, 52/36, 52/38, or 53/39T, you can expect smooth and efficient shifting every time.

Exceptional Quality: Manufactured in the EU, these chainrings are renowned for their superior quality, stiffness, and manufacturing standards. Experience the finest aftermarket chainrings that deliver outstanding performance and reliability.

Wide Compatibility: Compatible with 10, 11, and 12-speed drivetrains, these chainrings offer versatility for various setups and preferences. Enjoy seamless integration with your existing components for a hassle-free riding experience.

Important Considerations: When installing these chainrings, it's essential to use a new chain for optimal performance. Additionally, while other configurations may work, it's recommended to stick to combinations within the specified range for optimal shifting and front derailleur compatibility.

Upgrade your cycling experience with the Absolute Oval Road 2X 110/4 Shimano 9100 Chainring and enjoy smoother shifts, enhanced performance, and unparalleled reliability on every ride.

Features
  • Premium compatibility with Shimano Dura-Ace 9100, 9000, Ultegra 8000, 6800, and 105 R7000.
  • Optimized design with specially configured ramps for smooth shifting.
  • Exceptional quality with superior stiffness and manufacturing standards.
  • Wide compatibility with 10, 11, and 12-speed drivetrains.
  • Recommended use of a new chain for optimal performance.

Advantages:

  • Unique aesthetic design.
  • Super stiff construction with a 5mm thickness.
  • Bespoke 4/6 point ramp and recess shifting design.
  • Excellent strength to weight ratio.

Specifications
  • Compatibility: Shimano Dura-Ace 9000, Ultegra 6800, Shimano 105 5800, Tiagra 4700. Compatible with Di2 & Pioneer, SRM, and other power meters.
  • Bolts: For Outer chainring, please order Long bolts OR Bolt Covers. Changing Inner chainring to oval only? Use original bolts.
  • Material & Finish: CNC machined 7075 Txxx Aluminum. Long-lasting construction. Type II anodizing.
  • Ovality: Optimized to each size separately. 34T - 6.5%; 36T - 11.4%; 38T - 11.4%; 50/52T - 10.3%; Timing of 108 - 109.5° after TDC (top dead center). Ideal for road climbing. Patent Pending.
